WHAT ARE POLYGON MACHINES?


Polygon machines are unique machine tools designed to machine polygonal components or to enable multiple grooving by turning a cutter and a workpiece at the ratio of 2:1 based on the cutting principle of specific characteristics.


For hexagonal machining, for example, three cutters are mounted on the hexagonal machining cutter holder, a blank is chucked, and then the starting button is pressed. Afterwards, all procedures are perfomed automatically in one process, and the machine stops quickly in its original position.
 Cutting video

Likewise, for polygon machining of one face, two faces, rectangles, octagons, etc, as well as multiple grooving are efficiently performed. Odd numbers of faces and clutch machining are also possible. (Optional)
FEATURES OF POLYGON MACHINES

1.Quick machining

No indexing is required. Compared with milling machines, polygon machines can process 3-5 times faster, while achieving a more accurate index angle.

2.Beatiful finish

A beatiful surface finished with straight cutting lines can be achieved by cutter bits, thereby improving and the commercial value and quality of machined components.

3.Accurate machining

A collet chuck is generally used, ensuring a high dividing accuracy.

4.Simple oparation

All you have to do is chuck a blank and press a button to start the machine, then all operations are perfomed automatically.

5..Speedy setup change

Easy and quick setup change. Also suitable for producing a wide variety of components in small quantities.

6.Ummanned operation also possible

An automatic blank feeding system can be installed for mass production, and unmanned operation is also possible.

7.A well organized after-sales service system

Polygon machines have proved successful, have been favorable evaluated, and are relied upon by many users in Japan, and around the world including Europe, North America, South America, Taiwan, Korea, and other Asian countries.


PRDUCTS LINEUP

PC-165PC-165
conventional polygon machine

詳細スペック

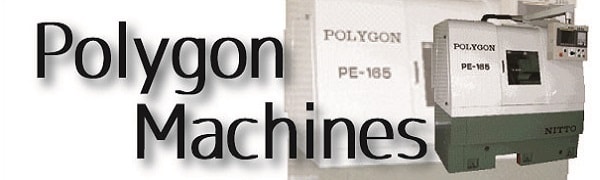

PE-165(NEW)
cnc polygon machine
詳細スペック

PC-280
PC-280
conventional polygon machine

詳細スペック

NCP-280
NCP-280
cnc polygon machine
詳細スペック


MP-150
MP-150

multi polygon machine
詳細スペック




MACHINING EXAMPLES

Square cutting

 Both end square taper cutting

Hexagonal cutting

  Spherical hexagonal cutting. (can cut with NC polygon machines)

2-face middle cutting

  Clutch cutting

Rhombus cutting 円径3ツ溝加工 Multi-grooving cutting


Please feel free to inquire.
