CNC type (Fanuc 0i-TD)
Specification		NVS-360	NVS-500	NVS-700
Ram	Max stroke	360mm	500mm	700mm
	Stroke per minute	20～50, 40～95	10~25, 20~60	8～20, 18～50
	Ram adjustable distance	325mm	450mm	650mm
	Angle of ram	10°
Table	Diameter of rotating table	φ560mm	φ800mm	φ1000mm
Table	Permissible load of working table	1000kg	2500kg	4000kg
Travel	X-axis travel distance	500mm	600mm	600mm
	Y-axis travel distance	600mm	700mm	800mm
	Tools post to column distance	200～880mm	300～1250mm	300～1650mm
	Table center to column distance	420～1040mm	550～1030mm	830～1630mm
	Tool to column distance	650mm	800mm	1000mm
Motor	Ram driving motor	3.7kw/5.5kw	5.5kw/7.5kw	7.5kw/11kw
	Feeding motor	X:1.4kw Y:1.4kw C:2.5kw	X:2.5kw Y:2.5kw C:3.0kw	X:3.0kw Y:3.0kw C:3.0kw
	Hydraulic motor	0.1kw	0.1kw	0.1kw
	Coolant motor	0.18kw	0.18kw	0.18kw
Accuracy	Positioning accuracy	X,Y:±0.010mm C:±30"
Accuracy	Reciprocating feed accuracy	X,Y: ±0.005mm C:±10"
Machine size	Net weight	6ｔ	9.5ｔ	18t
Machine size	Machine size（L×W×H）	2720×2380×3080	4000×3000×3600	4700x3000x4720

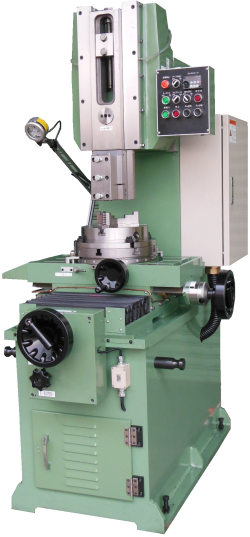

Specification		VS-200S	VS-200
Max stroke		200mm	200mm
Stroke per minute		26～60	26～60
Ram adjustment distance		200mm	200mm
Maximum of chuck size		8inch	10inch
Table center to column distance		250-480mm	250-480mm
Head to table distance		350mm	350mm
Diameter of rotating table		200mm	315mm
Tool to column distance		320mm	320mm
Table	X-axis travel distance	210mm	210mm
	Y-axis travel distance	230mm	230mm
Feed		Per stroke 0～0.25mm	Per stroke 0～0.25mm
Motor		3.7kw	3.7kw
Next weight		1.5ｔ	1.2ｔ
Machine size（L×W×H）		1250×1080×2100	1450x1100×2100

Note: The above specifications are subject to change without prior notice.

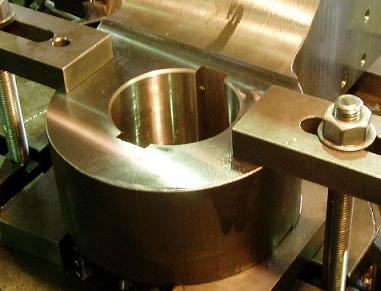

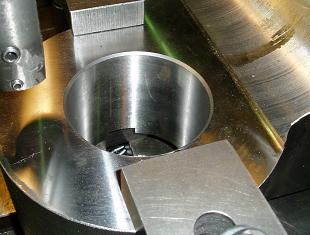

BEFORE	AFTER
